Add address points by road

You can select a road centreline to place address points associated with it and automatically assign the road name to each address point.The road name parts are automatically detected from the selected road and then are used to populate the appropriate fields in the new address points.

After saving the address points, the Update centreline addresses ranges tool is displayed.

Address points can be placed on the left, right or both sides of the road centreline. You can change the starting address number and increment value at any time during address placement. Once the address points have been placed, there is an option to display the Update centreline address ranges tool to update the address ranges for the selected road.

Use the following workflow to add address points by road:

  1. Click Address editor.
  2. Click Add Address Points by Road tool.
  3. Select the road centreline.
  4. Prior to placing the point, set the Snap value as required.


  1. Change the Current address number to the starting address number. This will be the address number you place on the map.
  2. Change Increment value to a positive or negative value. This will be the increment value for address numbers placed after the current address number.


  1. Click the map to place the address. The Current address number will increase by the Increment value. This will be the address number for the address you place next.
  2. As you place address points on the map, a rubber band line will display from the current address point to the previous address point. The rubber band is a drawing aid while placing address points for the selected road.
  3. Press the escape key to end placement mode or click the Select feature on the sketch widget.
  4. The editor panel will appear with all address points. Attributes for all address points are populated.
  5. At this point you can edit each address point or click Save to save all address points.
  6. The following prompt is displayed when all address points are saved:

“Do you want to update road address ranges?”

  1. If you answer Yes, the Update centreline addresses ranges tool appears.
  2. Click Update on the Update address ranges panel to update the ranges for the road.
  3. Click Save to save the address ranges.

Notes:

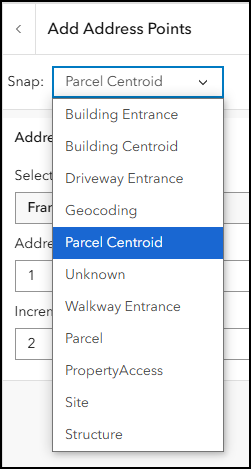

Prior to placing each point, you can set the Snap option. For example, in the image below, the Snap option is set to Parcel Centroid. This can be changed to Building Centroid.

Prior to placing each point, you can reset the current address number and increment. Negative increments are allowed. This is useful when you have completed addressing one side of the road and then want to switch to addressing the other side of the road. The increment value is applied to subsequent address numbers.

After pressing the escape key or clicking the Select feature icon to end placement mode, you can return to placement mode and continue where you left off by clicking the Draw point icon on the sketch widget.

Click the Select feature icon or press the escape key to end addressing mode. EditorToolBar.png

Click the Draw point icon to continue addressing where you left off. EditorToolBarDraPoint.png

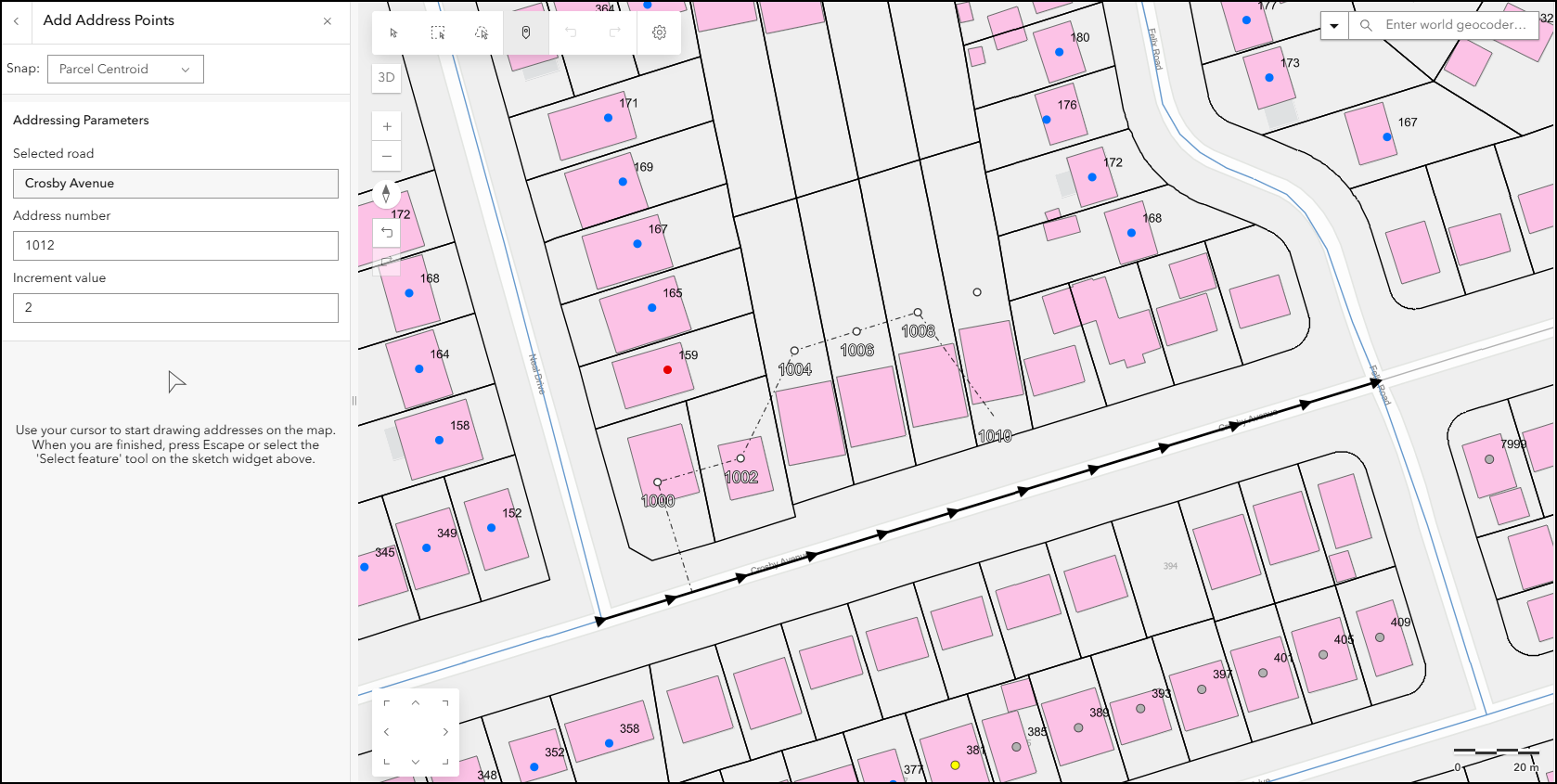

A map with several address points placed on the map. AddressAlongRoad.png
